spiral cooling tower

Short Description:

bread spiral cooling tower/conveyor

  • Brand Name: AOCNO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Condition: New
  • Material: Stainless Steel
  • Voltage: 220v/380v
  • Certification: CE
  • Installation: Overseas available
  • Electric Element: Schneider or Siemens or ABB
  • PLC: Siemens
  • Product Detail


    Product Tags

    The bread spiral cooling tower/conveyor are equipped with best frequency changer, high-quality reduction box, and Schneider Electric components.
    The Conveyor belt is made of stainless steel and the skeleton is made of stainless steel square tubes.
    Narrowest belt is 200 mm and the widest belt is 1300 mm.
    Minimum is 50 meters, maximum is 1200 meters.

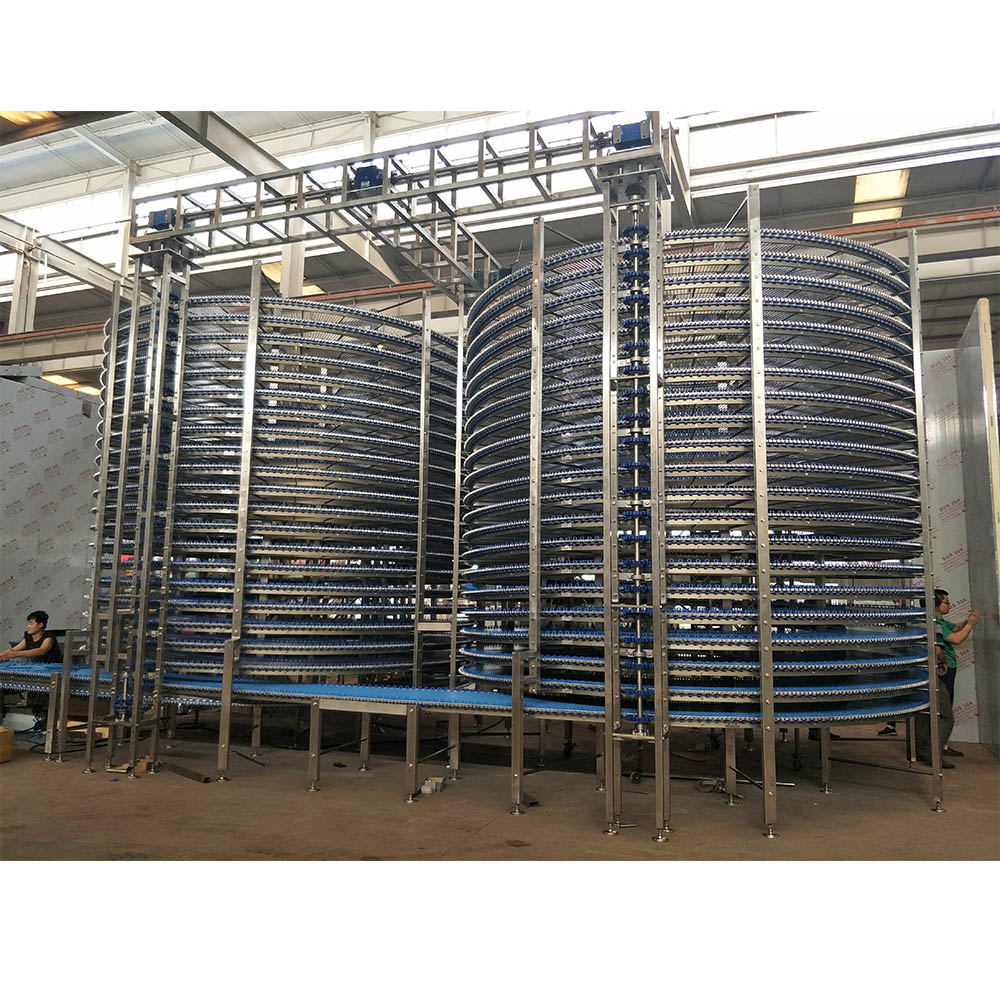

    The Spiral cooling tower maximum diameter is 12 meters and the minimum diameter is 1.5 meters.
    Spiral tower up to 6 meters, minimum 1 layer, maximum 40 layers.

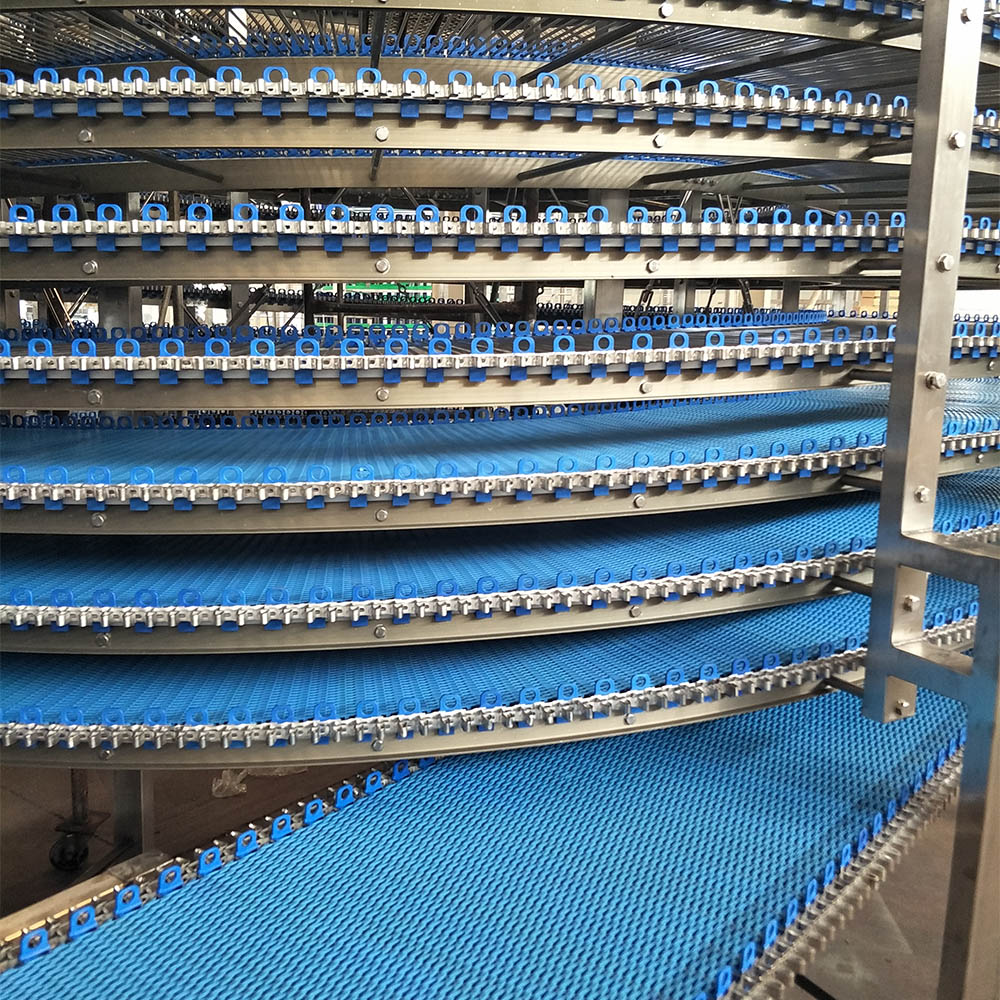

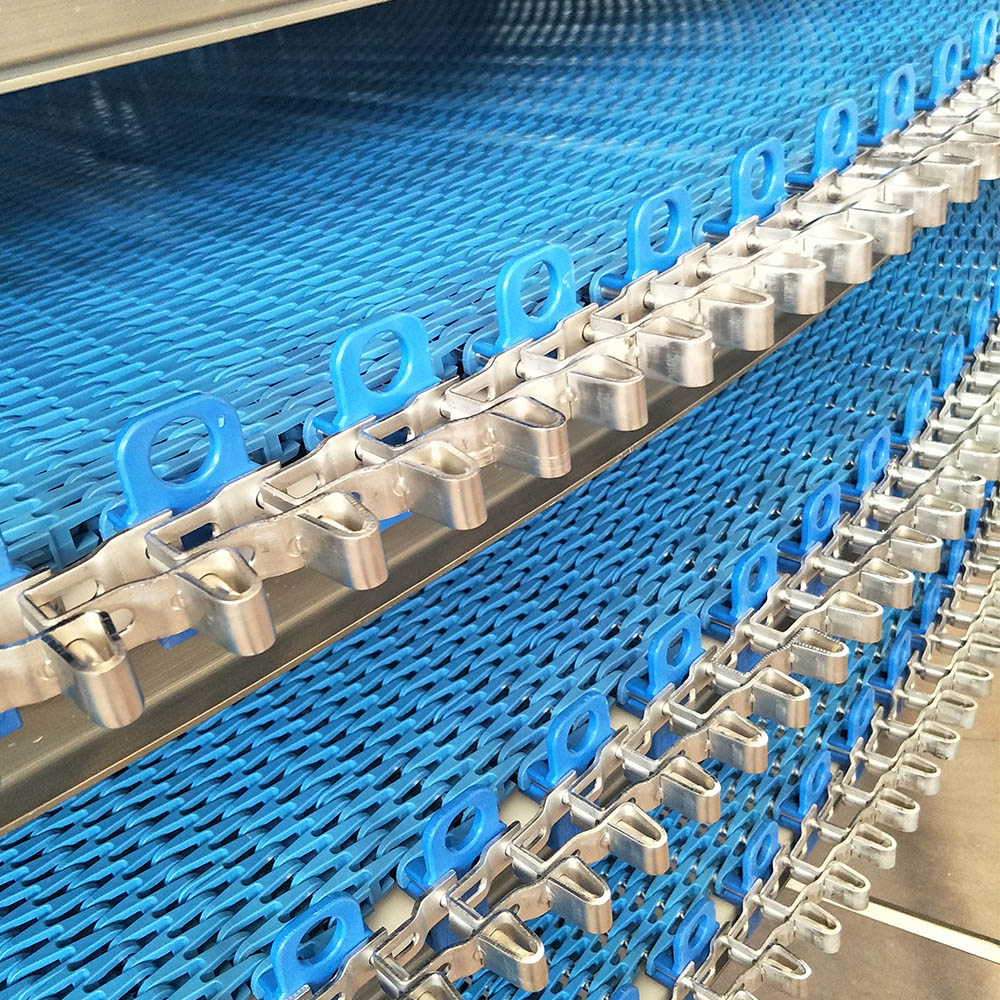

    Spiral Cooling Tower  The mesh belt is made of 304 stainless steel and the skeleton is made of 304 and 201 stainless steel square tubes.
    Belt width range  200 mm-1300 mm
    Belt length range  Single tower length 50 meters – 1200 meters
    Tower diameter range  1.5-12 Meters
    Layer height  Spiral tower up to 6 meters
    Tower Layer range  1-40 layers
    Entrance&exit direction  Low inlet high exit  high inlet low exit  two in and two out, three in and three out, ellipse

    11 9
