Dough Sheeter

Short Description:

Dough Sheeter

  • Brand Name: AOCNO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Condition: New
  • Material: Stainless Steel
  • Voltage: 220v/380v
  • Certification: CE
  • Installation: Overseas available
  • Electric Element: Schneider or Siemens or ABB
  • PLC: Siemens
  • Dimension(L*W*H): Different models
  • Dough thickness: 0.3-50mm
  • Function: Reversible dough flatten/laminating machine
  • Weight: 195-230kg
  • Power: Different models
  • Warranty: 1Year
  • Rolling speed: 133 r/min
  • Usage: Croissant,pizza,puff pastry and pressing dough
  • Capacity: 5kg/time, 4-6 times/hour
  • Product Detail


    Product Tags

    Dough Sheeter

    Basic parameters:

    Model  ACN-D525S  ACN-D525T  ACN-D600L
    Conveyor Spec  500*1000*2  500*1000*2  600*1000*2
    Rolling Speed( r/min) 133 133 133
    Dough Thickness(mm)  0.3-50  1-35  0.3-50
    Processing Weight   5KG/time  5KG/time  6KG/time
    4-6times/h 4-6times/h  4-6times/h
    Power(kw)  0.75  0.6  0.75
    Net Weight(kg)  220  195  230
    Gross Weight(kg)  260  235  270
    Dimensions in Operation(mm)   2520*955*1285 2080*880*620   3420*980*1235
    Dimensions Closed(mm) 1300*955*1750   750*880*840 2000*980*1700
    Voltage  220V-380V-50/60HZ-1/3PH  220V-380V-50/60HZ-1/3PH  220V-380V-50/60HZ-1/3PH
    Packing Size(mm)  1360*1015*1810  810*940*900  2060*1040*2100


    Application scenario:

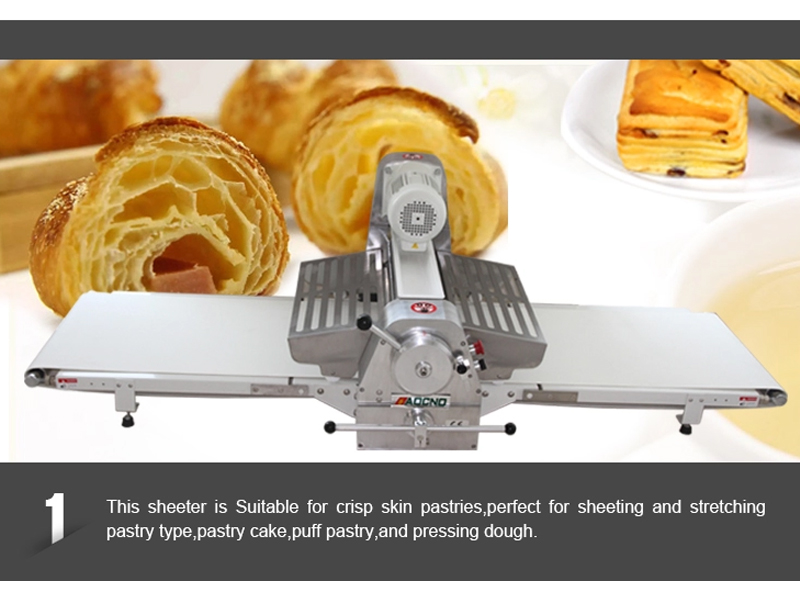

    This dough sheeter is perfect for sheeting and stretching pastry type, pastry cake, puff pastry, and pressing dough. The floor standing and countertop reversible types from AOCNO are two kinds of heavy duty dough sheeter designed for commercial applications.

    The equipment has high hardness, high strength enamel coating and easy-to-remove dough scraper, which ensures safe and reliable operation. Its stainless steel roller is equipped with a flour reservoir, and the dry flour will fall automatically during tabletting to prevent the dough from sticking again. The dough sheeter operates with extensive expansion of pastry shops and bakeries. It is a good cake making machine.



    1.    Push-button control, Convenient side operation.

    2.    Forward or reverse operation.

    3.    Ships standard with synthetic, non-stick rollers.

    4.    Ergonomic design for safety, speed, sanitation, and ease of use.

    5.    Heavy-duty stainless steel construction.

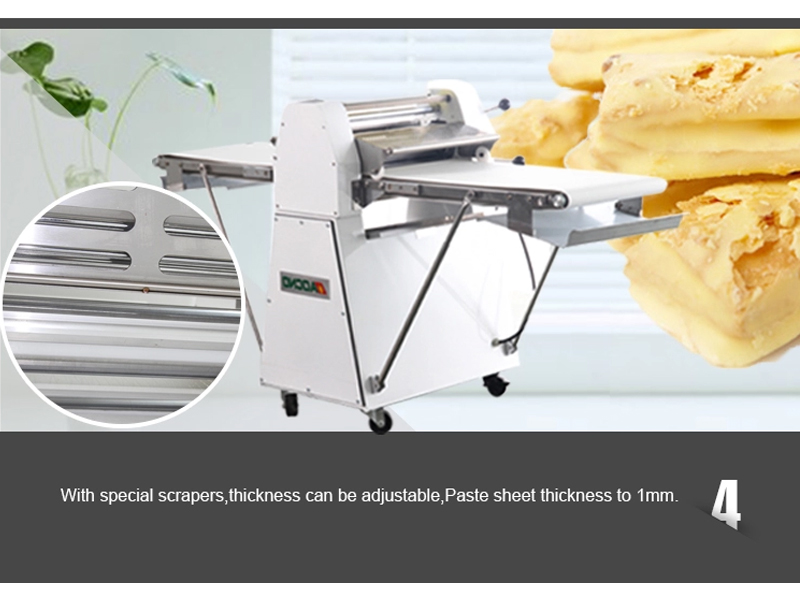

    6.    Simple handle adjustments for exact, uniform dough thickness.

    7.    Safety sensors for automatic shutoff.

    8.    Compact design for maximizing counter space.

    9.    Maintenance-free drive mechanism isolated from roller area.

    10.   Spring-loaded scrapers for easy removal and cleaning.

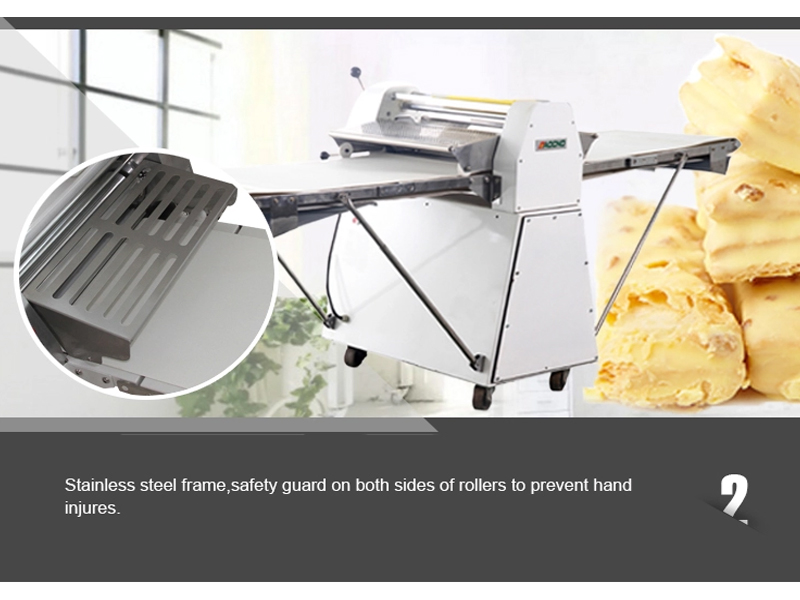

    11.  Safety guard on both sides of rollers to prevent accidents or injuries.

    01 02 03 04 05 06
