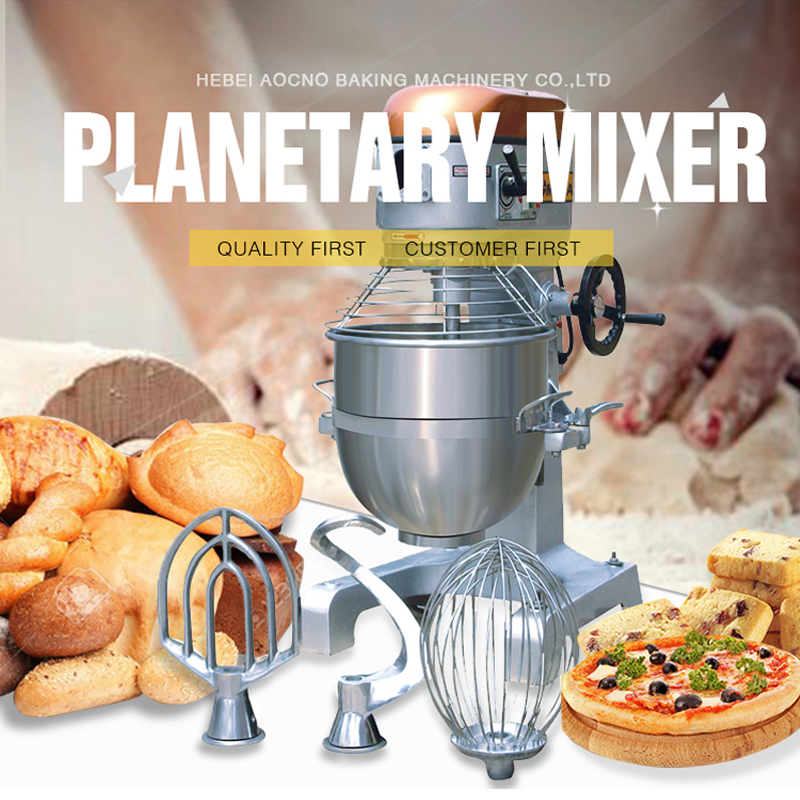

Planetary Mixer

Short Description:

Planetary Mixer


  • Brand Name: AOCNO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Condition: New
  • Material: Stainless Steel
  • Voltage: 220v/380v
  • Certification: CE
  • Installation: Overseas available
  • Electric Element: Schneider or Siemens or ABB
  • PLC: Siemens
  • Raw material: egg,butter,paste

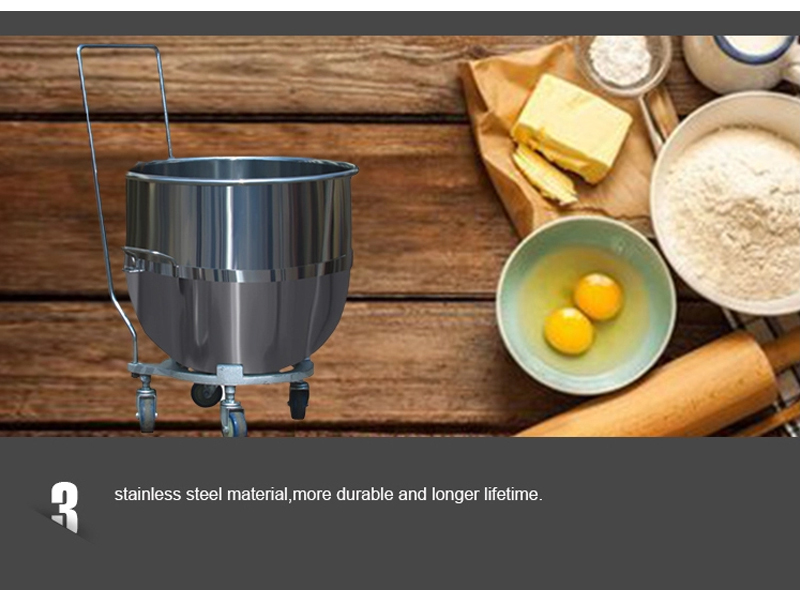

  • Material: 304 stainless steel
  • Revolution speed: 40/80/156
  • Bowl capacity: 10-80L
  • Fillings: 4.5kg
  • Product Detail

    FAQ

    Product Tags

    Planetary Mixer
    Basic parameters:

    Model ACN-PM

    10L

    ACN-PM

    20L

    ACN-PM

    30L

    ACN-PM

    40L

    ACN-PM

    60L

    ACN-PM

    80L

    ACN-PM

    160L

    Bowl Capacity(L) 10  20  30  40  60 80   160
    Voltage  220v/380v-3ph
    Power (kw)  0.23  0.38  0.75  1.13  2.25 3.75  4-6
    Rotation 156/340/530  131/288/518  120/240/468 120/240/468  80/141/228  80/141/228  254/380



    Application scenario:

    The planetary mixer is very popular in the food and baking industry due to its simple structure, easy operation and reduced cost. This planetary mixer can be used to mix dry and wet powder, light pulp, gel and dough.

    The mixing bowl is always fixed on a semi-circular frame. The planetary motion is generated by installing a gear pinion on the mixer shaft, which is driven on a fixed internal gear ring.

    The mixing effect of the planetary mixer is very good. The stirrer in the mixing bowl can be mixed uniformly. The single planetary mixer is cheap, has a wide range of uses, and can be made into different sizes. Multiple bowl and blender designs can be used at the same time, and the removable bowl design allows another mix to be made without affecting production: when one bowl is connected to the blender (in operation), the material can be filled the other bowl and ready for mixing in the next batch.



    Features:

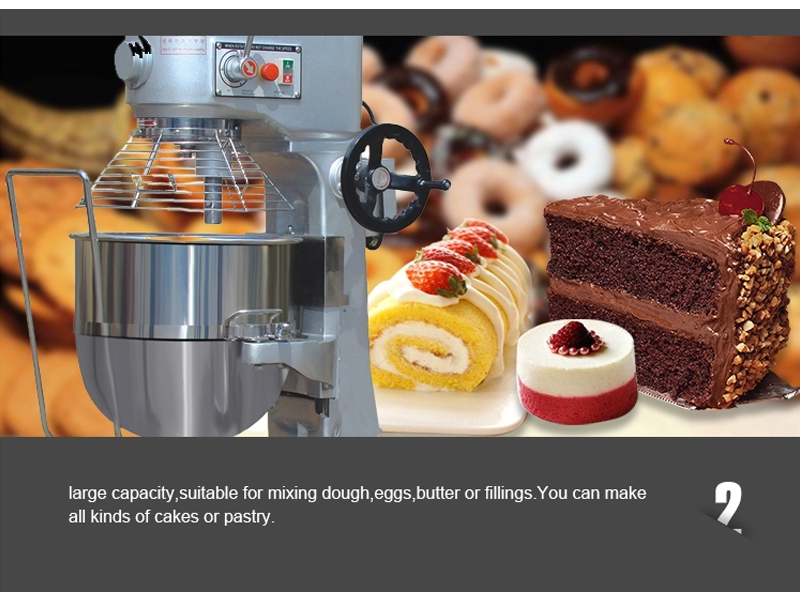

    1. Suitable for making bread, butter ,egg, sugar, sauces, paste and so on.

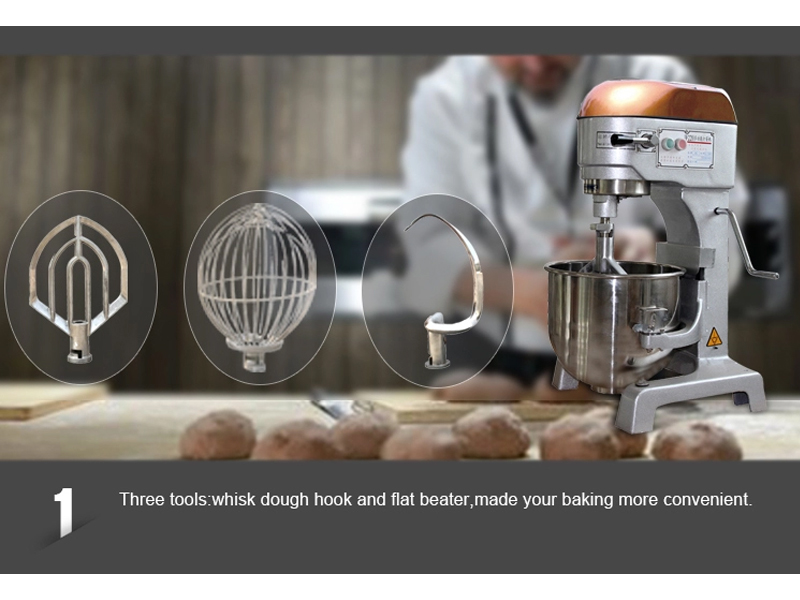

    2. Three tools:whisk, dough hook, and flat Beater.
    3. Capacity from 10L to 80L.
    4. Automatic over-current protection.
    5. Bowl protection grid.
    6. Emergency stop button.
